Essential Guide to Milling Balls: Choosing the Right Grinding Media for Your Operation

Introduction

In modern industrial processes, grinding media—commonly known as milling balls—play a critical role in material reduction, homogenization, and surface treatment. From mining and cement to chemical and power generation industries, it is important to select the right grinding media, as this choice significantly impacts product quality, energy consumption, and operational efficiency.

This guide provides an in-depth look into various types of grinding media and explains how to choose the ideal solution based on your specific application—featuring GrindingBall.com’s high-performance forged steel balls, cast balls, high chrome grinding balls, rods, and cylpebs. We will also cover the key properties of milling balls and grinding media that influence their effectiveness and suitability for different processes.

Understanding the Milling Process

A ball mill works on the principle of impact and attrition, where a rotating cylindrical drum or container is partially filled with grinding media and the target material. As the drum rotates, the movement of the grinding media lifts the balls, which then cascade down inside the shell, creating repeated impacts that facilitate particle breakdown.

This movement and the resulting mixing of the balls enhance the efficiency of size reduction by ensuring thorough contact between the grinding media and the material. The speed of rotation, measured in rpm, directly affects the efficiency of mixing and size reduction, as higher rpm increases the energy and frequency of impacts.

The process can be dry or wet, depending on material properties and end-use requirements. Crucial to its success is the correct choice of media material, size, hardness, and shape.

Types of Grinding Media at GrindingBall.com

The composition and density of milling media are important factors that influence their performance, efficiency, and suitability for specific milling processes. GrindingBall.com offers a range of milling media suitable for various applications, ensuring optimal grinding results.

Below are the key types:

• Steel Balls:Known for their high strength and durable nature, steel balls have a high density and are suitable for high-impact and abrasive environments. Their robust composition ensures long-lasting performance in demanding milling operations.

• Ceramic Balls:Ceramic milling media are valued for their superior hardness, excellent strength, and resistance to wear. Their durable composition and optimal density make them suitable for fine grinding and applications where contamination must be minimized.

• Rubber Balls:With a unique composition, rubber balls offer moderate strength and are suitable for less abrasive environments. Their lower density compared to steel or ceramic makes them ideal for specific milling tasks where gentle grinding is required.

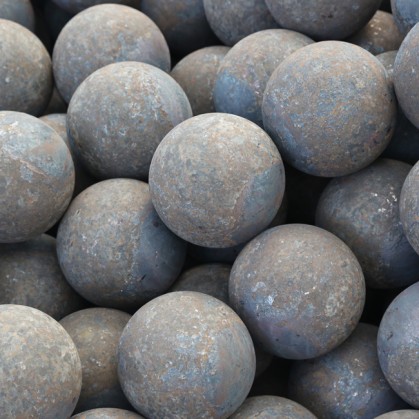

1. Forged Steel Balls

• Manufacturing Process: Produced by heating and hammering high-quality steel billets, followed by quenching and tempering.

• Properties:

  • Superior toughness and hardness

  • Low breakage rate

  • Excellent impact resistance

• Applications:

  • Gold, copper, and iron ore mining

  • Thermal power plants

  • Cement manufacturing

• Benefits:

  • Longer service life

  • Consistent performance under high-load conditions

2. Cast Steel Balls

• Manufacturing Process: Made via die-casting using advanced pouring and heat treatment technologies.

• Properties:

  • Uniform microstructure

  • High wear resistance

  • Cost-effective for dry grinding

• Applications:

  • Cement clinker mills

  • Coal mills

  • Silica sand grinding

• Benefits:

  • High volume output

  • Affordable for large-scale operations

3. High Chrome Grinding Balls

• Manufacturing Process: Alloy steel with chromium content >10%, cast and heat-treated to increase hardness.

• Properties:

  • Excellent corrosion and abrasion resistance

  • High surface hardness

• Applications:

  • Wet grinding environments

  • Ore beneficiation and chemical industries

• Benefits:

  • Low wear rate

  • Reduced contamination

  • Ideal for fine grinding processes

4. Grinding Rods

• Manufacturing Process: Rolled from round steel bars, then heat-treated online for consistent quality.

• Properties:

  • High straightness

  • Uniform hardness from surface to core

• Applications:

  • Rod mills for mineral beneficiation

  • Barite and phosphate grinding

• Benefits:

  • Minimized rod consumption

  • Fewer shutdowns and maintenance

5. Grinding Cylpebs

• Manufacturing Process: Made using metal molds for shape consistency, followed by heat treatment.

• Properties:

  • Greater surface area contact than balls

  • Higher grinding efficiency

• Applications:

  • Cement plants

  • Fine grinding circuits

• Benefits:

  • Lower energy consumption

  • Narrower particle size distribution

Key Factors When Choosing Grinding Media

To achieve the best result in the milling process, it is important to understand the factors that influence the outcome, such as media size, capacity, and material compatibility.

Selecting the right grinding media is not a one-size-fits-all decision. Here are key criteria to guide your choice:

Media size and shape: Different sizes and shapes of grinding media can be selected and adjusted to match the capacity of your ball mill and the requirements of your application. Adjusting the diameter or operational parameters allows you to optimize the process for both batch and continuous operations, directly impacting the results.

Material compatibility: The result of the grinding process depends on selecting suitable media with the right capacity and size for your specific material and desired fineness. Choosing the appropriate combination ensures optimal results and efficiency.

1. Material Hardness

• Harder materials require tougher media.

• Forged and high chrome balls are ideal for high-impact mining operations.

2. Chemical Compatibility

• For materials that may chemically react with metal, high chrome or ceramic alternatives reduce contamination.

3. Grinding Method

• Dry grinding: Preferably uses cast steel or high chrome balls due to their hardness.

• Wet grinding: Better with high chrome or forged balls that resist corrosion.

4. Media Size and Shape

• Larger balls break down coarse particles; smaller ones are better for fine grinding.

• Cylpebs provide more surface contact for narrow particle size distributions.

5. Budget and Lifespan

• While forged balls may have a higher initial cost, their longevity often makes them more economical over time.

• Cast balls offer an excellent balance between performance and price for many applications.

Industry Applications

GrindingBall.com products are designed for high-performance use across several major sectors:

In the chemical industry, grinding ball are essential for processing chemicals, enabling efficient reduction of particle sizes to enhance chemical reactivity and produce specific compounds. In the manufacture of pigments for paints, grinding media are used to achieve the desired particle size and consistency required for high-quality coatings. Additionally, in laboratory and industrial applications, grinding balls are suitable for reducing the particle sizes of various sample materials, ensuring precise and consistent results for research and production processes.

Mining Industry

• Iron ore, gold, copper, and non-ferrous mineral processing

• Grinding rods and forged steel balls are most commonly used

Cement Industry

• Finish grinding and raw material milling

• Cast balls and cylpebs provide high grinding efficiency

Thermal Power Plants

• Coal grinding in ball mills

• Forged steel balls and high chrome balls are widely used

Chemical & Ceramic Industries

• Fine grinding of silica, pigments, and specialty materials

• High chrome grinding balls minimize contamination and provide better consistency

Why Choose GrindingBall.com?

With over two decades of manufacturing expertise, GrindingBall.com stands out for its:

• ✔ISO9001:2015 Certifiedproduction lines

• ✔Strict quality controland metallurgical testing

• ✔Custom product specificationsbased on your milling conditions

• ✔Global shipping capabilitiesand customer support

GrindingBall.com is committed to helping clients maximize grinding efficiency, reduce wear rates, and lower total cost of ownership.

Conclusion

The success of any grinding operation starts with choosing the right media. By understanding your raw material, operational conditions, and output requirements, you can select the perfect grinding solution.

Whether you need forged steel balls for mining, high chrome balls for corrosion resistance, or grinding rods for rod mills—GrindingBall.com offers quality you can count on.
